Comprehensive Guide to 10 Types of Screwdriver Heads

There are so many types of screwdriver heads. Choosing the wrong screwdriver head may cause losses to your project. This blog is the ultimate guide to screwdriver bit types. We will introduce you to different types of heads and their uses. Teaching you how to choose for different markets.

10 Types of Screwdriver Heads

A screwdriver consists of a handle, a shank and a blade head. The blade head is used to insert the screw head and is the most important part. Choosing the right screwdriver bit is crucial to the success of a project. There are various screwdriver bits available on the market to accommodate different types of screws. The following are several common types. You can choose according to the actual needs of your project.

Common Screwdriver Head Types

Slotted (Flathead) Screwdriver

Flathead screwdrivers are used for screws with a straight slot on the head. A slotted head screwdriver consists of a flat knife head; it's the traditional type of screw head. The slotted head screwdriver is available in various sizes to accommodate different types of bolts heads. This kind of screwdriver is very common for DIY projects and house repairs.

When the torque is large, this screw head drive types are easy to slip. When choosing the slotted head screwdriver, special attention should be paid to matching the width of the blade tip with the width of the screw slot. Both too wide and too narrow can easily damage the surface of your screw.

Phillips Screwdriver

Phillips head screwdriver is one of the most widely used screwdriver heads at present. The tip of the screwdriver is in a standard cross structure, corresponding to a screw with a cross groove. Phillips screwdrivers are widely used on household appliances, electronic products, and auto parts. The common specifications of Phillips screwdrivers are PH0, PH1, PH2, PH3. The larger the specification, the larger the screw size it is suitable for. You should select and match according to the screw size to achieve a better meshing effect and torque transmission.

Pozidriv Screwdriver

The Pozidriv screwdriver head looks similar to the Phillips crosshair and is an upgraded version of the Phillips screwdriver. These screwdriver head types feature additional slots on the tip that provide better grip and reduced cam-out.

These screwdriver tip types are particularly suitable for wood structures, building hardware, and heavy-duty fastening applications that require a large tightening torque. The specifications are PZ1, PZ2, and PZ3. It is important to strictly distinguish between Phillips and Pozidriv to avoid damaging your screws.

Robertson (Square) Screwdriver

The Robertson screwdriver, also known as a square screwdriver, features a square-shaped tip. These types of screwdriver bits are popular in DIY markets and professional markets in Canada. If you are planning to expand your business in Canada, this type of screwdriver will meet the needs of your customers.

This square-shaped tip has high torque transmission efficiency and is not prone to slippage, making it suitable for production environments that require rapid batch tightening.

Torx Screwdriver

Torx screwdriver, also known as a hexagonal star screwdriver head, has a hexagonal star tip, corresponding to a screw head with a star slot. This design can provide greater torque transmission and less slippage, making it a popular choice in industries such as electronics, automotive, and appliance manufacturing.

The specifications of this type of screwdriver head include T5, T10, T15, T20, T25, T30, etc. Each grade corresponds to screws of different sizes. Correct use of a Torx screwdriver can help you to reduce screw head damage and extend tool life, suitable for occasions with high requirements for reliability and stability.

Hex / Allen Screwdriver

The Hex screwdriver head is hexagonal; these hex screwdriver types are often used in furniture assembly. It has a large meshing area, uniform force distribution, can withstand considerable torque, and is suitable for deep or embedded structure screws.

The specifications range from 1.5mm to 10mm and corresponding imperial sizes. When you are choosing, it is necessary to distinguish between metric and imperial sizes to avoid slippage or damage caused by slight size differences between the screwdriver and the screw.

Common Screwdriver Heads Chart

Drive Type	Visual Characteristic	Key Features & Common Applications
Phillips	Standard cross-shaped recess	Common general-purpose drive for household and DIY applications.
Slotted (Flat)	Single straight transverse slot	Traditional design for basic repairs and antique restoration.
Pozidriv	Cross-shaped with four additional shallow radial lines	Better grip and less cam-out; widely used in Europe and woodworking.
Torx (Star)	Six-pointed star shape	High torque capacity; used in automotive and electronics.
Hex (Allen)	Hexagonal recess	Provides strong grip; common in furniture, bicycles, and machinery.
Square (Robertson)	Square recess	Excellent torque transfer; popular in construction and cabinetry.

Looking For A Reliable Tool Set Supplier for Your Market? Contact Us！

Specialty Screw Drive Types

JIS Screwdriver

JIS screwdriver is designed for JIS screws. JIS screwdriver types head is a type of cross drive under the Japanese industrial standard. It looks very similar to the common Phillips cross, but the geometry is different. The design of JIS screwdriver tip types provides you with complete meshing and torque transmission, reducing the tendency of intentional slippage. Therefore, you can use it in precision instruments, motorcycles, cameras, audio equipment and other Japanese devices.

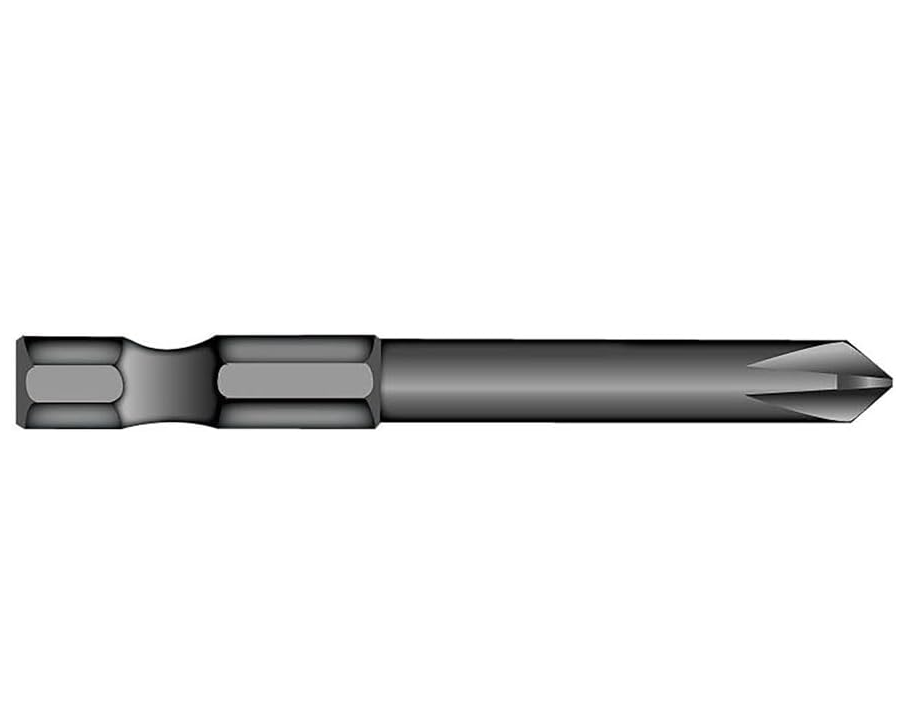

Frearson Screwdriver

Frearson screwdriver looks like a Phillips head screwdriver. But these types of screwdriver bits have a sharper point and deeper grooves than their counterparts. The Frearson is widely used in fields such as ships and outdoor equipment, and can effectively reduce the risk of screw head slippage or damage when you are operating.

Clutch Head Screwdriver

Clutch Head, commonly known as "butterfly-shaped" or "bow tie shaped" screw drive, is characterized by a symmetrical double-wing structure in the groove shape. In the early days, this screw drive type was commonly used in the automotive industry and in the maintenance of some industrial equipment, which helps you to prevents the equipment from being disassembled without authorization.

Spanner / Snake Eye Screwdriver

Snake eye screwdriver has two symmetrical small round holes on the head and is often used in high safety requirements applications such as public facilities, electronic equipment shells, etc. The original design intention of this type of head is to prevent tools from disassembling it. It requires a dedicated screwdriver with a double-needle structure to apply torque.

FAQ

1. Which Screwdriver Type is the Strongest?

Torx and Hex screwdrivers are the types of machine screw heads with the highest torque capacity. The design of these screw head styles provides a larger contact area and more stable engagement.

2. What Happens If You Use the Wrong Bit?

Using the wrong bit will not only damage the tool, but also cause slipping and thread slippage, and even pose safety hazards. Before operation, select the correct screwdriver head and screwdriver specification.

3. Can You Recommend the Best Screw Head Type for Outdoor Furniture?

Torx and Hex screwdrivers are most suitable for outdoor furniture. Outdoor furniture needs durability and corrosion resistance; Torx screwdrivers and Hex screwdrivers provide stable torque transmission, are not easy to slip and loosen after tightening, and are very suitable for structures that are exposed to the outdoor environment for a long time.

Final Thought

The above article helps you distinguish different types of screwdriver heads. Diversitech Global is a professional manufacturer and supplier of hardware tools. Our factory can provide professional screwdriver set solutions for global customers. We also offer OEM/ODM services to meet the needs of global distributors, retailers and tool brands.
