Different Types of Torque Wrenches Explained: Uses, Comparisons and Buying Guide

A torque wrench is a professional hand tool that can precisely control the output of torque. In actual fastening operations, inaccurate torque can cause bolts to loosen, get damaged and parts to crack, resulting in a series of product quality problems. In this guide, you’ll quickly learn the five main types of torque wrenches and which one fits your job.

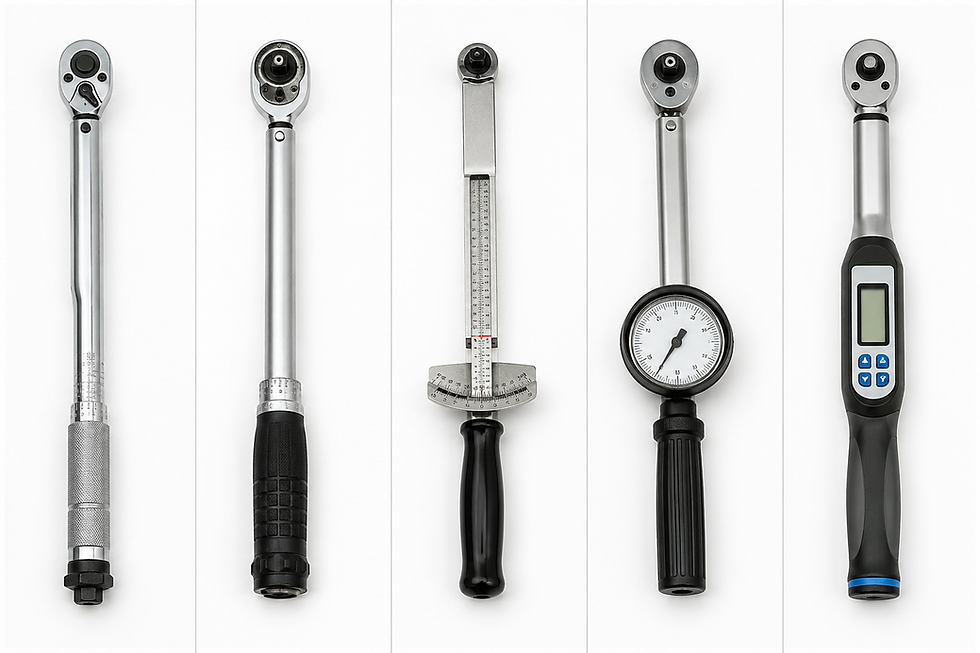

5 Different Types of Torque Wrenches

In this guide, you’ll quickly learn the 5 main types of torque wrenches, which type fits different jobs (maintenance, production, quality control), and how to choose the right digital torque wrench for your needs.

Click Torque Wrenches

The click torque wrench is one of the most widely used types of torque tools.

Working Principle: The interior of the click wrench is a spring clutch mechanism. First, you set the torque value you want. When the torque reaches the set value, this wrench will emit a "click" sound to remind you to stop applying force.

Advantages: Simple operation, cost-performance, suitable for most maintenance applications, rich torque range, high market acceptance.

Disadvantages: Recalibration is required after long-term use, and the spring accuracy may decline after long-term use.

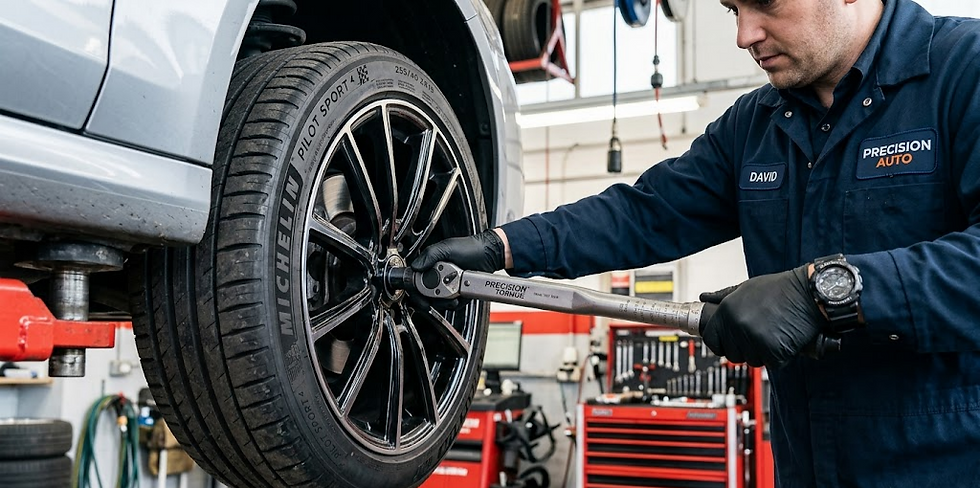

Applications: This click type torque wrench is often used in the automotive maintenance and mechanical maintenance industries.

Slip Wrenches

A slip torque wrench is also known as a limit torque wrench.

Working Principle: When the target torque is reached, the internal clutch mechanism will automatically disengage, the output end will stop applying torque, and the handle will slip off.

Advantages: The slip wrench is highly suitable for assembly line production work and can enhance the stability of assembly work. This type of torque wrench can effectively prevent overtwisting, ensure the consistency of output and reduce errors.

Disadvantages: The slip wrench is not suitable for frequent torque changes. It is not easy for beginners to get used to the slipping feel of this torque wrench.

Applications: The slip wrench is suitable for electronic assembly and precision manufacturing industries with high requirements for part protection.

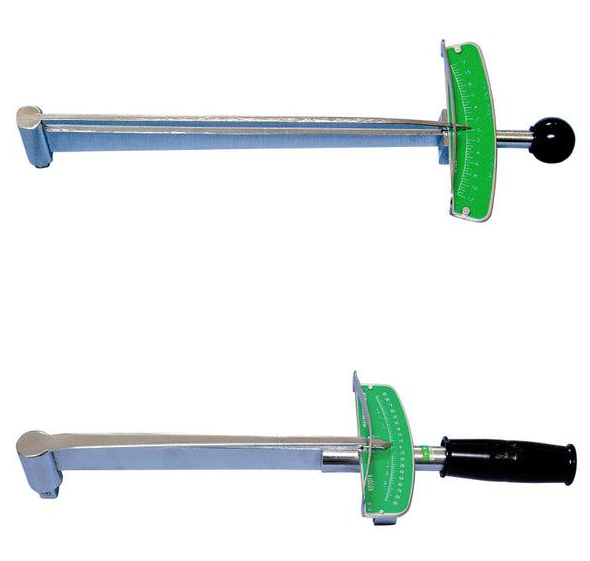

Beam Torque Wrenches

The beam torque wrench is a traditional type of torque wrench.

Working Principle:When using a beam type torque wrench, the main beam bends slightly, causing the pointer to move accordingly, allowing you to immediately read the data.

Advantages:The beam style torque wrench has a simple structure, is durable, and has low maintenance costs, making it ideal for the basic tool market.

Disadvantages:Compared with other torque wrenches, this type of torque wrench has lower precision and relatively lower operational efficiency.

Applications:This is an entry-level torque wrench, primarily used for daily maintenance and basic mechanical repairs, and is also suitable as a tool for teaching and training.

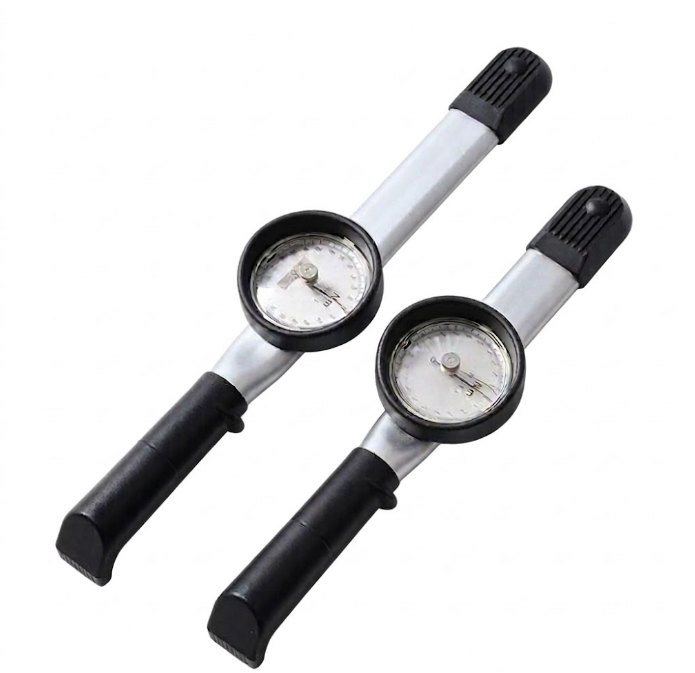

Dial Torque Wrenches

The dial torque wrench displays the torque value in real time via a mechanical dial. Compared to the click wrench, this torque wrench places greater emphasis on "real-time monitoring."

Working Principle: When using a dial type torque wrench, the pointer will move as the torque changes, and some models of the dial torque wrench can also record peak values.

Advantages:This torque wrench type is highly accurate, allowing you to read the current torque in real time without the need for batteries.

Disadvantages:It is inefficient to operate, requiring you to constantly observe the dial, and is inconvenient to operate in a confined space.

Applications:The dial torque wrench is a typical torque wrench for testing, commonly used in calibration laboratories, quality inspection, engineering testing, and aerospace equipment maintenance.

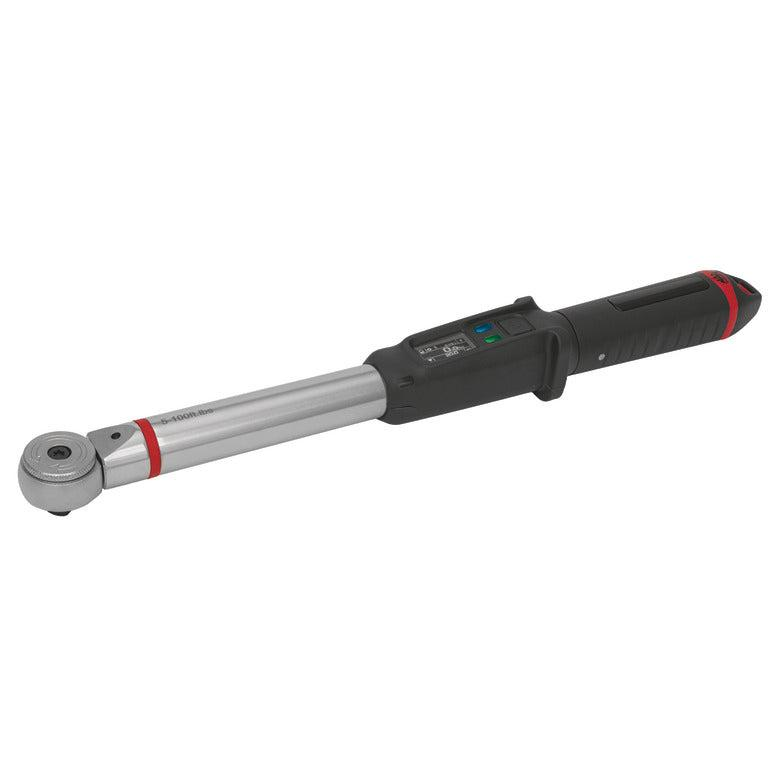

Digital Torque Wrenches

The digital torque wrench is one of the most popular types of torque wrenches. It can detect torque in real time through electronic sensors and display the data on the screen. Some high-end digital torque wrench can also record data and connect via Bluetooth.

Working Principle: The electronic sensor of a digital torque wrench will monitor the torque you apply in real time. When the torque reaches your set value, this system will prompt you to stop applying force through sound, vibration and light.

Advantages：This torque wrench has particularly high precision and supports data storage, which can minimize human error to the greatest extent.

Disadvantages:Digital torque wrenches are more expensive than other torque wrenches. The electronic components in them require maintenance and are sensitive to harsh environments.

Applications:This type of torque wrench is widely used in precision manufacturing industries, such as aerospace, medical equipment, and automotive manufacturing, and is the mainstream choice for digital management factories.

Need reliable hardware tool set supplier for your store? Contact us!

How to Choose a Digital Torque Wrench for Production or Quality Control?

In modern factory production and quality management, digital torque wrenches are an indispensable hardware tool. Compared to traditional beam torque wrenches or click torque wrenches, these types of torque wrenches not only provide higher precision torque measurement but also display data in real time and record operation history, meeting the stringent requirements of production lines and quality control for accuracy and traceability. When you select a digital torque wrench, the following 3 aspects need to be considered:

1.Match Drive Size and Torque Range

Digital torque wrench comes in many sizes, each suitable for a specific industry. Below is a list of digital torque wrench sizes and common applications.

Drive Size	Torque Range	Typical Applications	Recommended Model
3/8 inch	10–100 Nm	Automotive repair, engine assembly, small to medium machinery	3/8 digital torque wrench /3/8 torque wrench
1/2 inch	40–300 Nm	Truck maintenance, industrial equipment installation, heavy machinery	1/2 digital torque wrench
3/4 inch	100–1000 Nm	Industrial machinery, wind power equipment, shipbuilding	torque wrench set
1 inch	500–3000 Nm	Heavy industry, shipbuilding, mining equipment	snap on digital torque wrench / snap on torque wrench digital

2.Accuracy Requirements for Digital Torque Wrenches

• ±2% accuracy is suitable for most production and quality control applications.

• For high-precision industrial or aerospace applications, a ±1% accuracy model is recommended.

3.Data Management Features and Traceability

High-end torque wrenches, such as the snap-on digital torque wrench, support data storage, USB export, and Bluetooth synchronization. This helps you record production line operations and track quality.

FAQ

1.What is the most common type of torque wrench used today?

The click torque wrench is the most common type of torque wrench. Click style torque wrench is the simplest to operate, reasonably priced, and widely used in industries such as auto repair.

2.What are the common mistakes when using a torque wrench?

Common mistakes when using a torque wrench include incorrect torque setting, neglecting calibration, using the torque wrench as a disassembly tool, and not adjusting the wrench's scale back to the lowest setting after use.

3.Does a torque wrench stop tightening after clicking?

Most torque wrenches do not automatically stop tightening after reaching your preset torque. For example, the click torque wrench will only make a "click" sound to remind you to stop applying force when the target torque is reached.

4.How do I know if a torque wrench is accurate?

A torque calibration test is the most reliable way to determine the accuracy of a torque wrench. Most torque wrenches have a specified accuracy range, typically between ±3% to ±5%. For most users, it’s a good idea to recalibrate your torque wrench on a regular schedule and test it again if it’s been stored for a long time without use.
